Exhaust and Room Extraction Parts





Exhaust Extraction



A key factor for any Dynamometer installation to be successful is an efficient exhaust extraction system, without it, consistent dyno results will be difficult to maintain, and not to mention the fact that Carbon monoxide (CO) is a life threatening poisonous Gas. Dyna Pro Dynamometers Ltd can supply a complete range of Exhaust and room extraction components to suit virtually any Dyno Room installation.

Dyno Room



We can supply:

  • High Power Extractor Fan Motors (Up to 40kW)
  • All duct work & fittings
  • Exhaust Attenuators
  • A range of High Temperature Flexible Hosing
  • Room Extraction and Ventilators
  • Repositionable Exhaust Arms for the Dynamometer







Exhaust Extraction Units

Exhaust Extraction Units
Available Left or Right Handed
High Pressure, High Volume
Single and 3-Phase supply.
150mm & 200mm Duct Diameters
High Temperature Flexible Hose

High Temperature Flexible Hose
Available in 500°C & 800°C
75, 100, 150, 200 & 250mm Diameters
1.5 Meter Length as Standard
up to 10 Meter Max Length
Inline Exhaust Attenuators

Inline Exhaust Attenuators
Available in 100, 150 & 200mm Diameters
 600mm or 1200mm Lengths
Galvanized Steel 'Spiraline' Ducting

Galvanized Steel 'Spiraline' Ducting
Available in 100,150,200 & 250mm Diameters
3 Meter Lengths
Ducting 'Elbows'

Ducting 'Elbows'
Available in 100,150,200 & 250mm Diameters
Ducting 'Tee'

Ducting 'Tee'
Available in 100,150,200 & 250mm Diameters
Reducers

Reducers
Available in 100,150,200 & 250mm Diameters
Reducers, Blanking Caps & Wall Brackets

Reducers, Blanking Caps & Wall Brackets
Available in 100,150,200 & 250mm Diameters
Sealants, Tapes & Screws

Sealants, Tapes & Screws





Adjustable Exhaust Extraction Arm, with Cone.



Dyna Pro Exhaust Extraction Arm

Fully adjustable Exhaust Extraction Arm with Cone. Air Fuel 'Sniffer' fits inside the exhaust cone. Up to 2 Exhaust Arms can be fitted to the Dynamometer. Stops damage to End-Can. (Not supplied with flexible exhaust hose.)

Part No. / Order Code: DP-EX-ARM

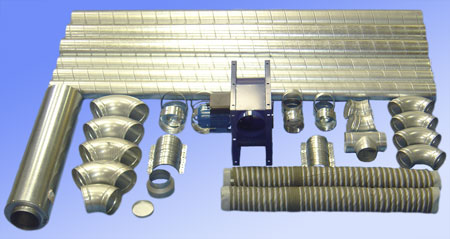

Exhaust Extraction Kit

Dyna Pro also offers a standard exhaust extraction kit, that is suitable for most Dyno Room installations. The Kit includes:-



Dyna Pro Exhaust Extraction Kit

  • Exhaust Extraction Fan (Single Phase, Left or Right Handed)
  • 200mm Diameter x 120mm Long Exhaust Attenuator
  • 2 off 500°C High Temperature Flexible Hose (1.5 & 2.0 Meter Each)
  • 4 off 150mm Diameter 'Spiraline' Galvanised Ducting (3 Meter)
  • 3 off 200mm Diameter 'Spiraline' Galvanised Ducting (3 Meter)
  • 4 off 150mm Elbows
  • 4 off 200mm Elbows
  • 2 off 150mm 45 Degree Elbows
  • 1 off 150mm 'Tee'
  • 1 off 200mm to 150mm Reducer
  • 1 off 150mm Blanking Caps
  • 6 off 150mm Wall Brackets
  • 6 off 200mm Wall Brackets
  • 1 off Bird Grill
  • 3 off 150mm Couplers
  • 3 off 200mm Couplers

Order Info./Part Number: DP-EEK-100



Technical Specification Downloads



Download   Description    Part Number / Model    File Size
Exhaust Extraction Fan   Exhaust Extraction Fan (Left Hand) (200mm Duct Size)
  DP-EGF-200-L    444KB
Exhaust Extraction Fan   Exhaust Extraction Fan (Right Hand) (200mm Duct Size)
  DP-EGF-200-R    444KB
Exhaust Extraction Fan   Exhaust Extraction Fan (Left Hand) (150mm Duct Size)
  DP-EGF-150-L    361KB
Exhaust Extraction Fan   Exhaust Extraction Fan (Right Hand) (150mm Duct Size)
  DP-EGF-150-R    431KB
Exhaust Extraction Installation   Exhaust Extraction Installation Kit
  DP-EEK-100(RH)    536KB



If you require any help or assistance then please call or email us. sales@dynapro.co.uk
